Top quality filter plans and techniques |
|
 |
|
| |
 |
Automatic Type>Backwash Filter |
|
|
|
|
|
| |
|
|
|
 |
 |
 |
| |

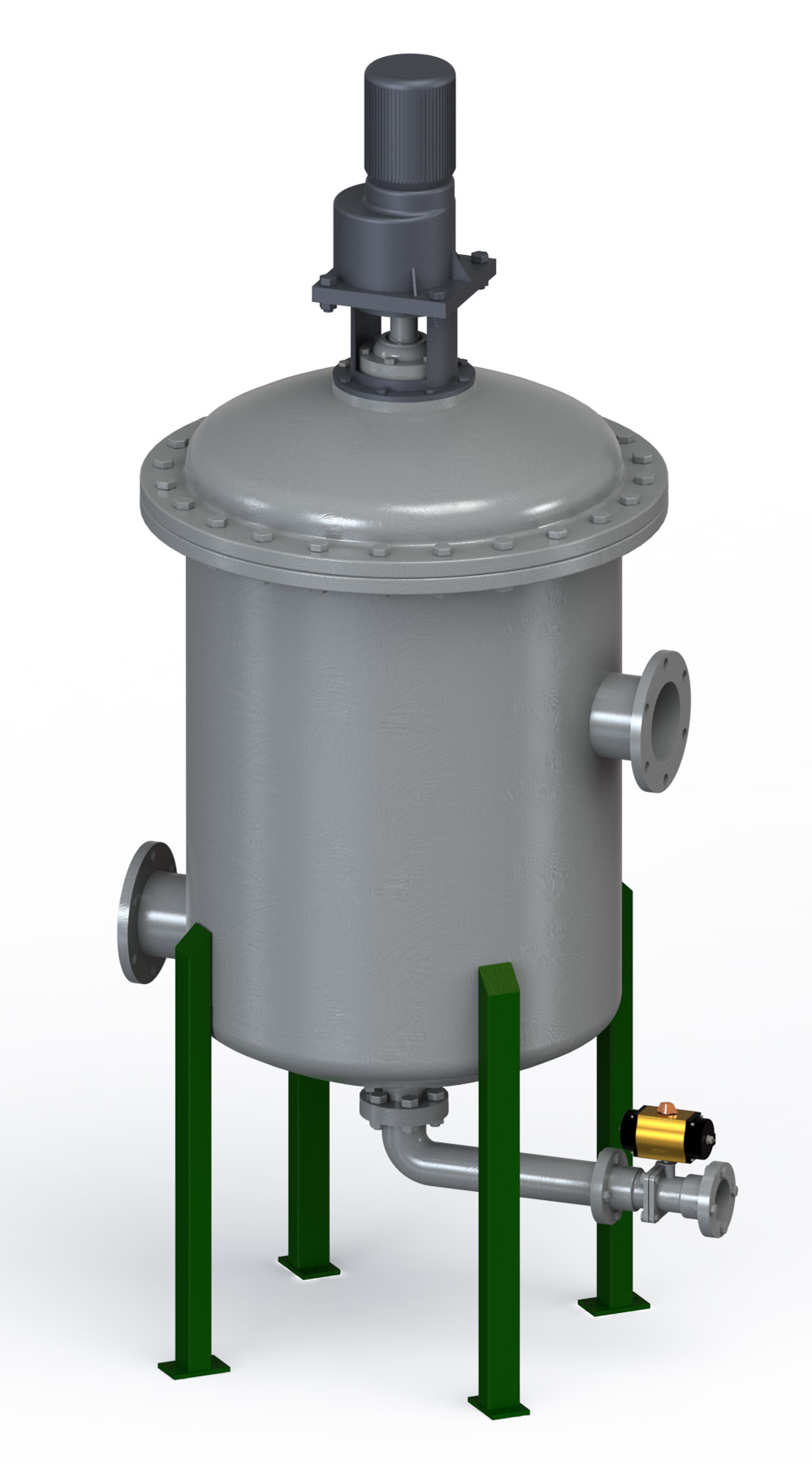

HEF Series - Automatic Backwash Filter has the multiple screens design. Every time the automatic backwashing system is turned on, a backwash cycle will start and clean screens one by one. But only one single screen will be cleaned once, while other screens are keeping filtration procedures on, which ensures the function of on-going filtration.
General Information
|
Model
|
HEF-400
|
HEF-600
|
HEF-800
|
HEF-1000
|
HEF-1200
|
HEF-1400
|
HEF-1600
|
|
Large capacity models are available on demand
|
|
Operating pressure (Bar)
|
0 ~ 15 (Pressure can be increased on customers demand)
|
|
Inlet and outlet size(Inch)
|
3〞、4〞、5〞、6〞、8〞、10〞、12〞、14〞
|
|
Maximum Operating Temperature ( °C)
|
200
|
|
Discharging valve Size (Inch)
|
3〞
|
|
Backwash system trigger mechanism
|
Pressure detection and time settings
|
|
Backwash media
|
Filtered liquid
|
|
Backwash cycle time (Sec)
|
30
|
40
|
50
|
35
|
40
|
45
|
50
|
|
Minimum wash water volume (L)
|
10
|
16
|
22
|
28
|
34
|
40
|
46
|
Flow Table and Opening Area
|
Filtration precision (Micron)
|
10
|
25
|
50
|
75
|
100
|
125
|
150
|
200
|
300
|
500
|
|
The processing amount (L/min)
|
46
|
116
|
232
|
337
|
433
|
541
|
633
|
976
|
1135
|
1420
|
|
Filtration area (mm²)
|
203,575
|
|
|
 |
 |
 |
|
| |
|
|
|
|
