Top quality filter plans and techniques |
|
 |
|
| |
 |
Automatic Type>Sand Filter |
|
|

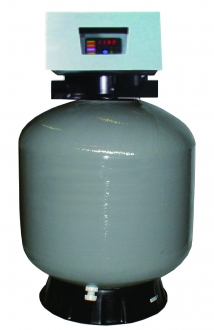

| High Pressure Sand Filter |
|
|
|
| |
|
|
|
 |
 |
 |
| |
Generally it is used at the front before deep sand filter and has the bigger filtration area because of the short and stout tank design. This initial filtering can deal with the liquid with more and bigger solids, which will protect the deep sand filter from the clogging with impurities. (Normally, the average filtration precision can achieve 50 Micron)
General Information
|
Model
|
TR-16FS
|
TR-18FS
|
TR-22FS
|
TR-26FS
|
TR-30FS
|
TR-36FS
|
TR-48FS
|
TR-55FS
|
TR-60FS
|
|
Caliber (Inch)
|
1″
|
1½"
|
1½"
|
1½"
|
2"
|
2"
|
3"
|
3"
|
3"
|
|
Filter cross-section area(m2)
|
0.13
|
0.16
|
0.2
|
0.3
|
0.4
|
0.6
|
1.1
|
1.54
|
1.6
|
|
Barrel diameter(cm)
|
40
|
46
|
53
|
63
|
73
|
90
|
122
|
140
|
160
|
|
Barrel height(cm)
|
66
|
77
|
82
|
85
|
104
|
128
|
141
|
165
|
172
|
|
Water volume of back wash (L/Min)
|
60
|
180
|
180
|
260
|
380
|
500
|
800
|
1000
|
1200
|
|
Ref. flow (L/Hr)
|
4300
|
9000
|
12000
|
16000
|
23000
|
30000
|
50000
|
69000
|
75000
|
|
|
 |
 |
 |
|
| |
|
|
|
|
| Currently Page：6 / 8 Total of 8 |
 |
 |
 |
 |
 |
|
|
|
